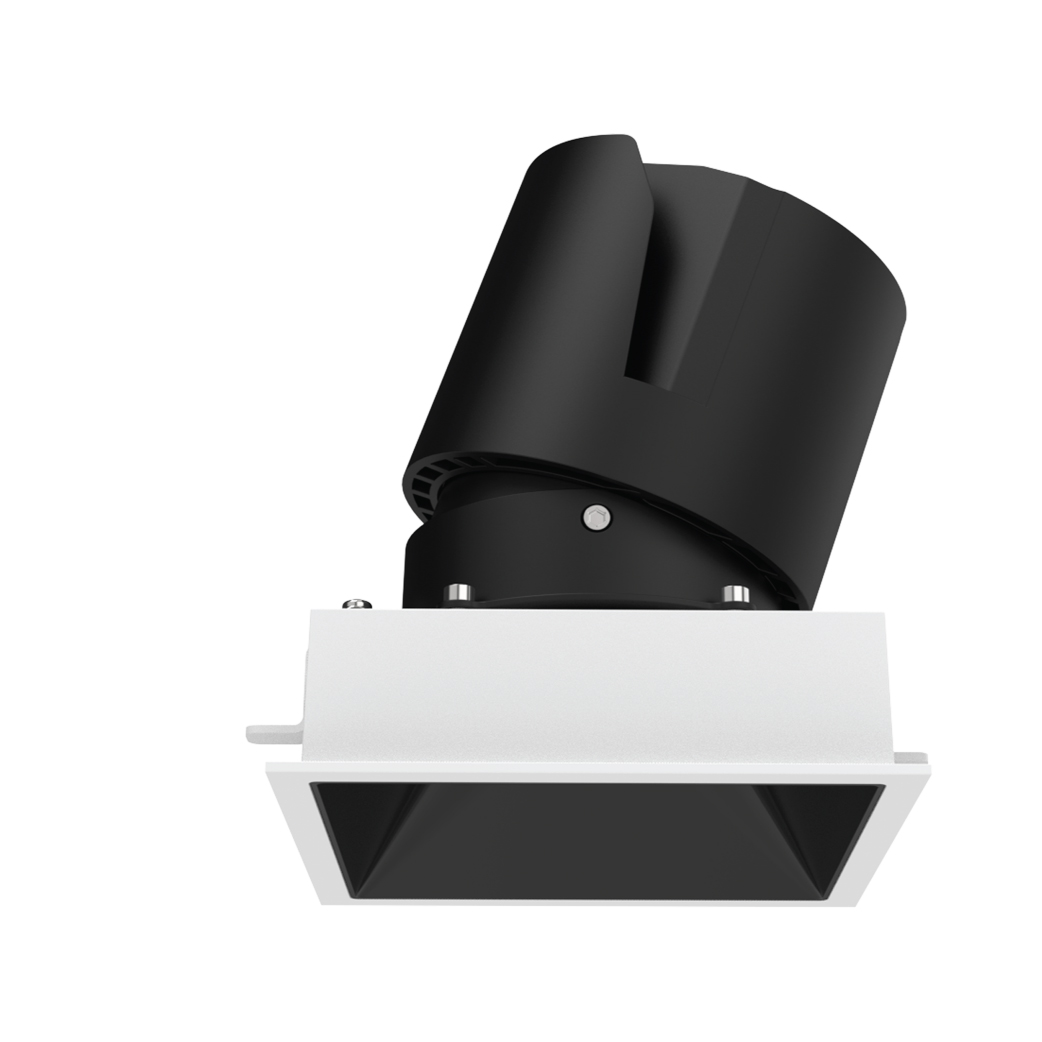

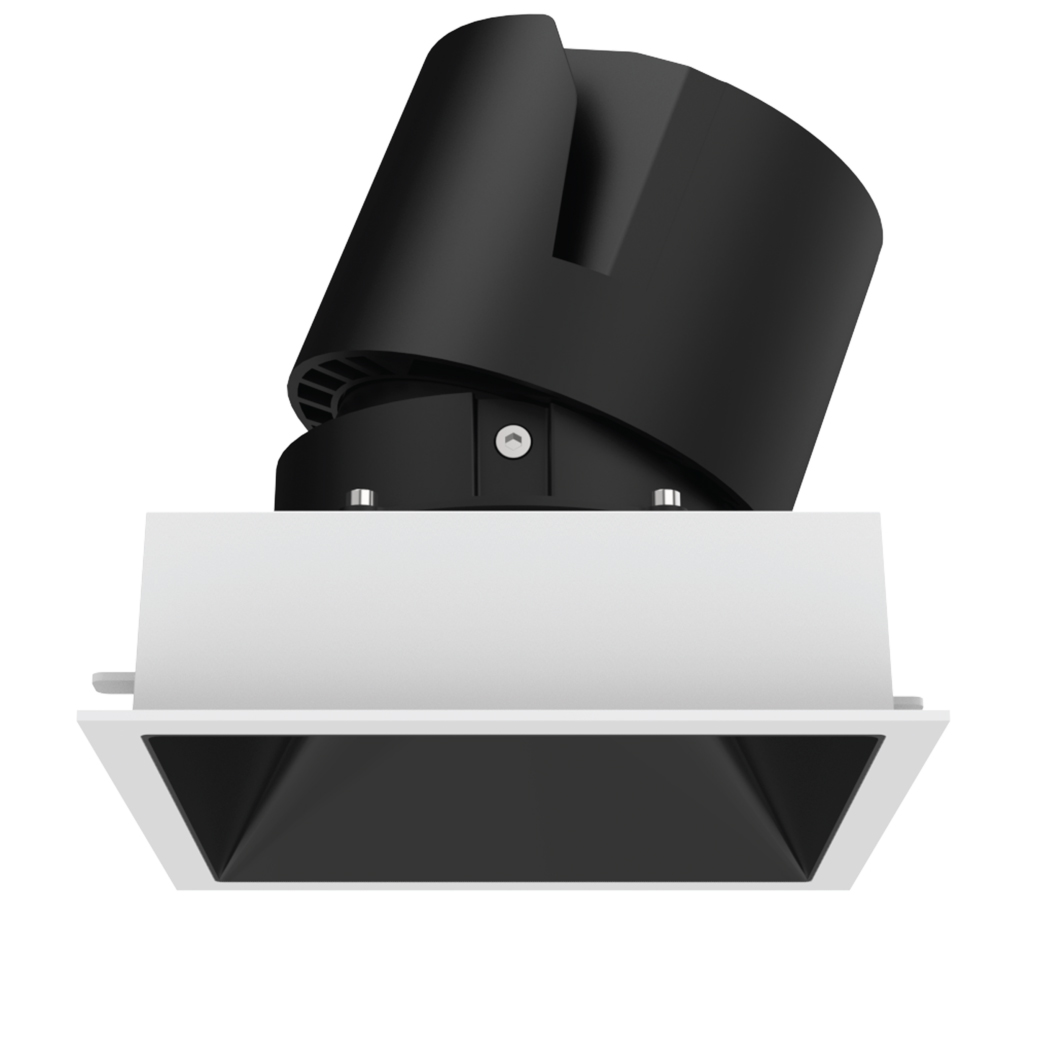

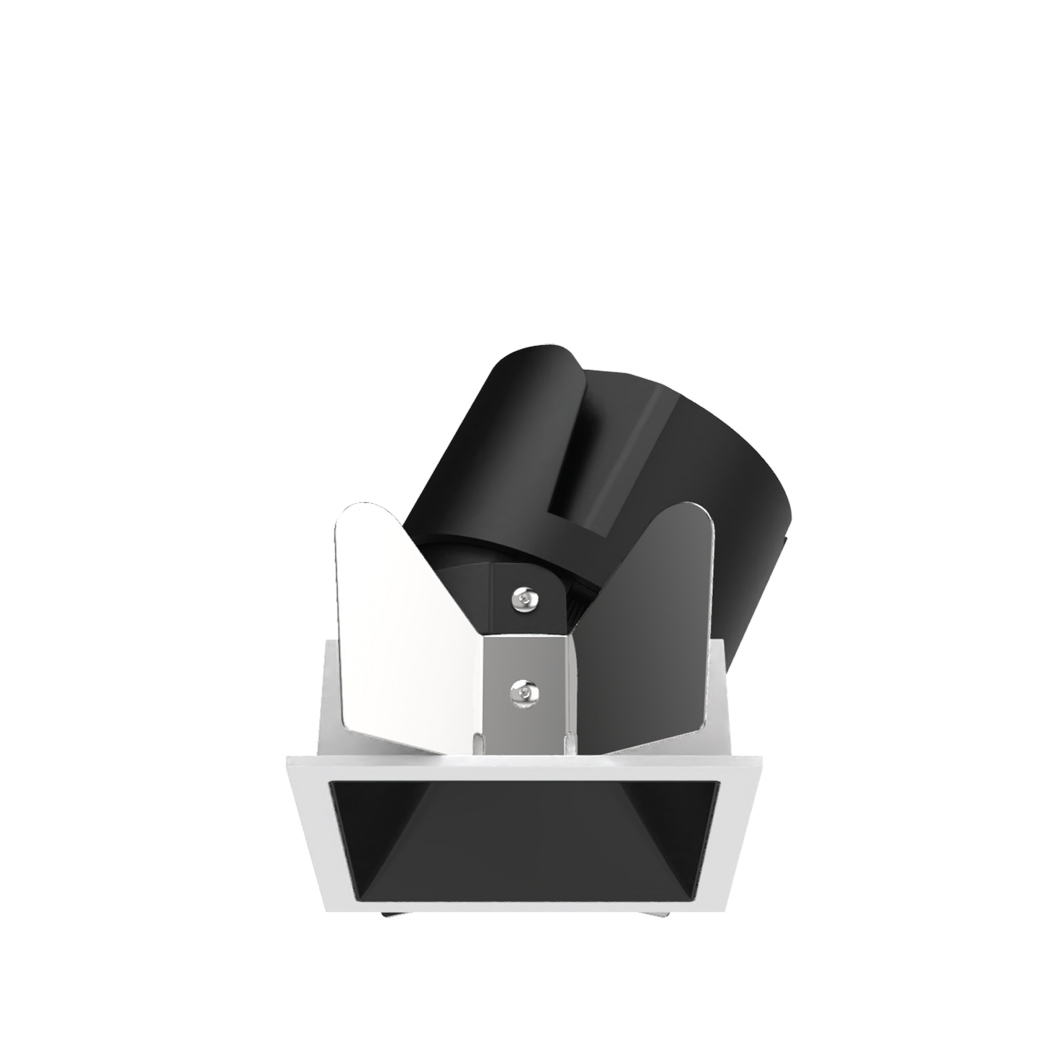

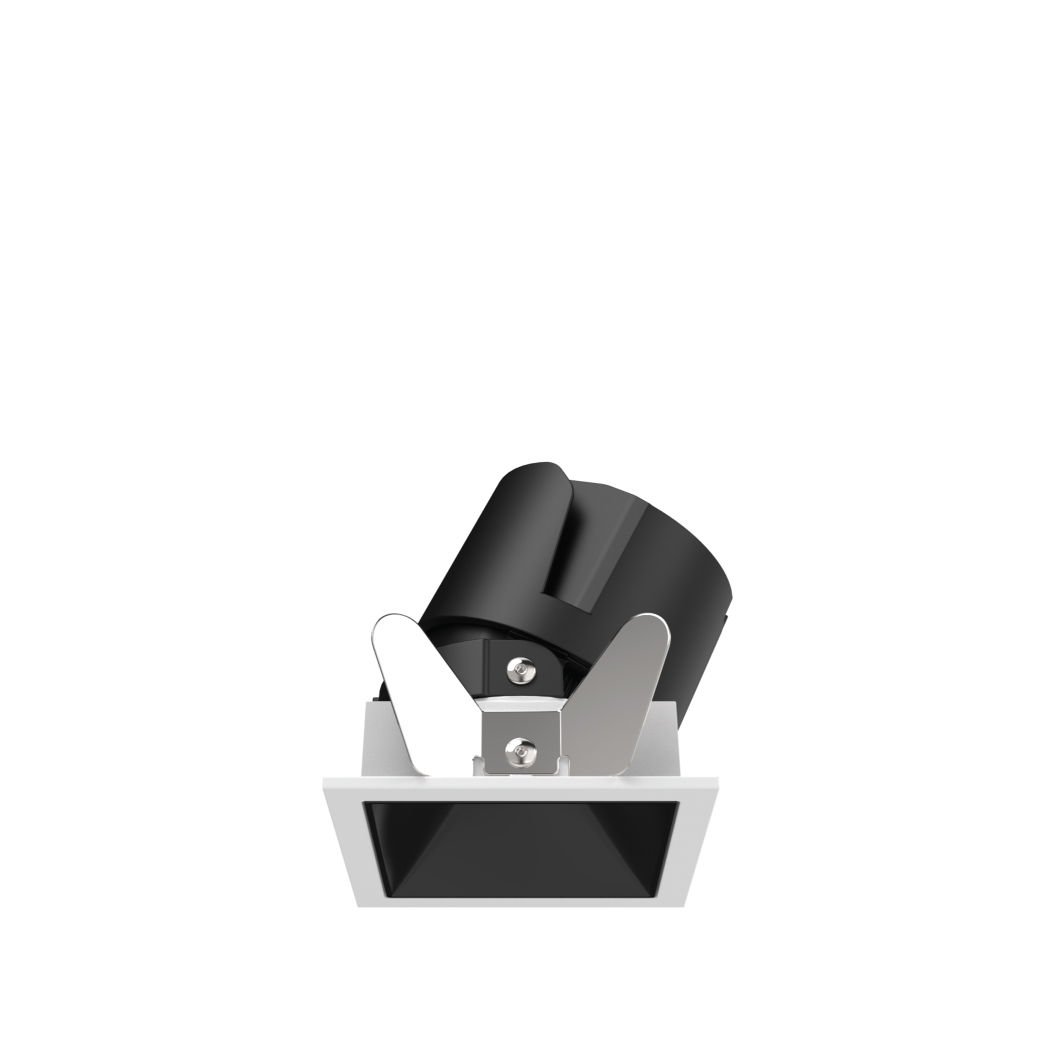

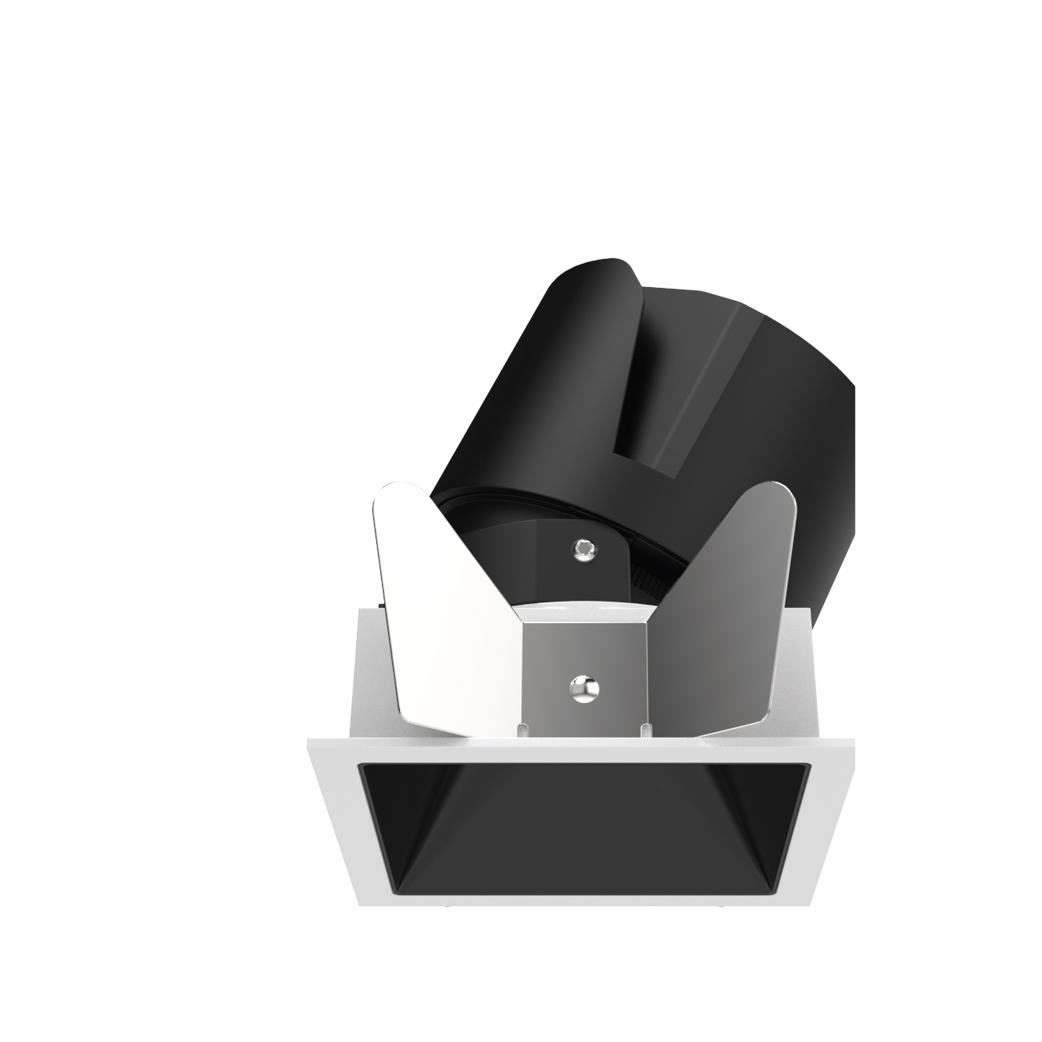

AETHER 系列 LED 窄邊嵌入式可調角筒燈,安裝后和天花完美融合。良好的防眩光性能及顏色一致性控制，具有舒適的出光效果，主要適用于酒店及會 所等室內場所。
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 2 2 | 5 Square Trim | LM04 COB 4W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 2 2 | 5 Square Trim | LM07 COB 7W | N No Driver | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 3 3 | 5 Square Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 3 3 | 5 Square Trim | LM13 COB 13W | N No Driver | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 4 4 | 5 Square Trim | LM18 COB 18W LM25 COB 25W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 4 4 | 5 Square Trim | LM25 COB 25W | N No Driver | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 5 5 | 5 Square Trim | LM25 COB 25W LM32 COB 32W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 5 5 | 5 Square Trim | LM32 COB 32W | N No Driver | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 6 6 | 5 Square Trim | LM32 COB 32W LM43 COB 43W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
KDA Downlight A series | 6 6 | 5 Square Trim | LM43 COB 43W | N No Driver | 1 15° 2 24° 3 36° 5 50°
| 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例:KDA35-LM07E-130SWT,具體以產品規(guī)格書為準。
